Damisol@3042-120

Damisol @ 3042-120

 very stable high reactive resin  _

 H level  _

 the excellent mechanical properties, durable  _

 high flexibility  _

 passed UL certification (certificate number: E98511)  _

An overview of the

One-component high temperature resistant, light yellow transparent unsaturated polyester resin, with Damidil 9117 as reaction diluent, after thermal crosslinking with H

Persistent high temperature resistant properties of the level above.

UL H level, certification number: E98511.

This product is very stable product of only group share, can be used for any continuous immersion process (dipping, rolling, dripping leaching); In the us

Under the condition of suitable viscosity, can be used for VPI process.

application

Applicable to all kinds of coil, especially to high mechanical strength of the motor and stator coil continuous immersion process (dipping, rolling, drops

Dip).

operation

3042 product can be used for any automatic or manual of dipping, rolled or dripping leaching process. Because it is low viscosity, so that the production

In parts of fine point has good permeability, preheated. Don't even need to part. According to the different types of motor selection

Resin viscosity parameters and. Series 3042, now has 120 mpas and 700 mpas viscosity of two kinds of specifications. The fine for impermeable

Wires can be used 9117 diluted resin to low viscosity. High viscosity specifications according to customer's requirement.

Crosslinking process: at least 150 oc 30 to 45 minutes.

High temperature and long time to achieve high mechanical and chemical resistance.

Resin should be to avoid impurity contamination and placed in the < 25 oc environment.

Test the viscosity changes on a regular basis.

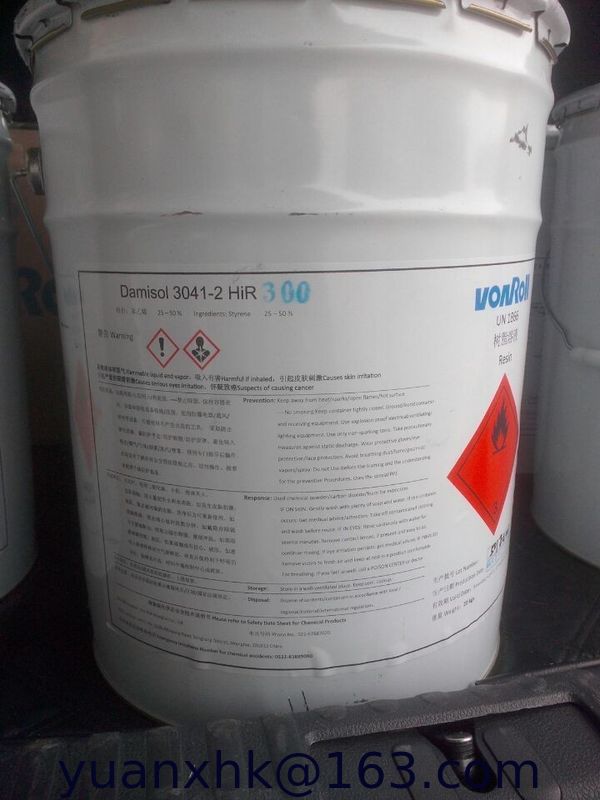

packaging

20 kg keg

200 kg a barrel

Storage environment

One-component 3042 products, store in airtight container, valid for up to 6 months (oc) or 12 months (15 oc).

Such as large storage tank inside, it is suggested that kept under standard atmospheric pressure dry air inside; At the same time, it is recommended that the tank is not put in full, the most

As many as 70% of capacity.

Mixing resin from time to time, can make the oxygen permeation into the resin, thus improve the validity.

Health and safety

Avoid contact with skin and eyes.

Operating in a ventilation environment and far away from the fire.

Wear safety gloves and eye operation.

Product data

Physical properties of unit data reference standard

Shore hardness D 88 ISO 868

Flash point

OC or 32

Viscosity, Brookfield, 23 oc) mPas 120 + 20

Gel time (120 oc) mn 3 ~ 5

VOC % 17 ISO 60455-3 or less

Mechanical properties of

Bond strength (23 oc) daN 35 IEC 1033

Bond strength (130 oc) daN 20 IEC 1033

Bond strength (155 oc) daN 18 IEC 1033

Bond strength (180 oc) daN 8 IEC 1033

Chemical properties

Water imbibition (23 oc, 7 days) % 0.23 ISO 62 or less

Chemical resistance (2% NaOH) % - 0.14 - ISO 175

Electrical properties

Dielectric strength (50% r.h., 23 oc) kV/mm DIN 46448 110 / VDE 46448 or higher
