| Place of Origin: | China |
| Brand Name: | VonRoll |
| Certification: | UL,SGS |
| Model Number: | Damisol@3500LoV |
| Minimum Order Quantity: | 2 PC |
|---|---|
| Packaging Details: | 20KG 200KG |
| Payment Terms: | TT |
Freon resistant insulating paint Damisol@3500LoV
one-component low viscosity freon resistant epoxy resin Ø
low VOC Ø
applies to from low to medium voltage motor and transformer Ø
can be applied to any form of impregnation and V (P) I process equipment Ø
class H (UL 1446) Ø
An overview of the
One-component solvent-free epoxy resin.
Low viscosity epoxy resin, freon, resistant heat cured with persistent high temperature resistant properties of H level above.
application
This resin is widely used in low to medium voltage industrial seal motor impregnation.
Excellent insulation at high temperature and mechanical performance, can also be applied in the traction motor and transformer.
Operation process
It is mainly used for atmospheric pressure or vacuum pressure impregnation process.
Due to the special reactivity, this product can also be used in any form of hot dip process (atmospheric pressure, rolled or dripping leaching).
In the process of hot dipping, the motor should be under 90 ℃ preheat before impregnation, gelation and curing process under the condition of 160 ℃ for 5 hours or 2 hours to complete under the condition of 170 ℃ (test temperature on copper wire).
Depends on the course of curing oven operation parameter setting, this process can be optimized under HuaHan technical support team.

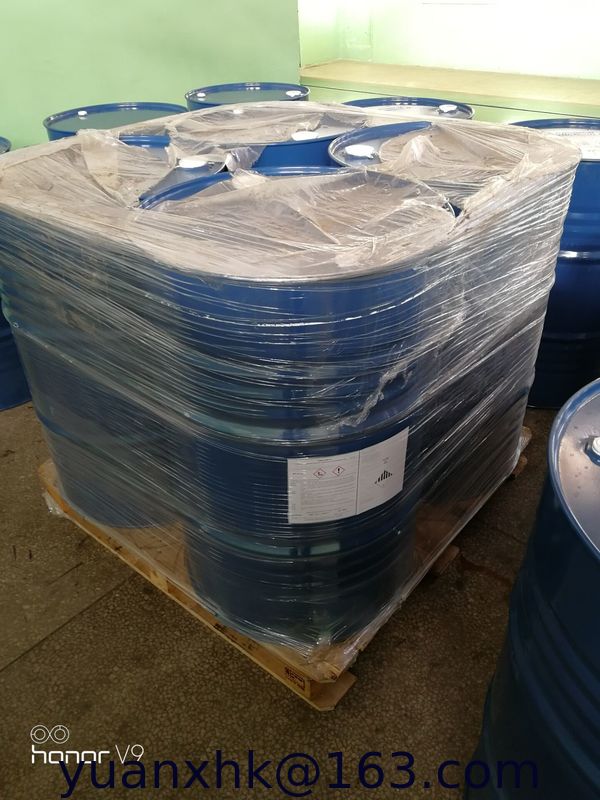

packaging
20 kg keg
200 kg a barrel
Storage environment
Below 25 ℃, valid for up to 12 months. Higher temperatures will lead to storage period shorten.
Such as resin is stored in large storage tank, it is suggested that kept under standard atmospheric pressure dry air or nitrogen.
Health and safety
Avoid contact with skin and eyes.
Wear safety gloves and eye operation.
Unit specification reference standard
Physical properties of
Smell a mild
Pale yellow appearance
Flash point ℃ 100 or higher
Viscosity, Brookfield, 23 ℃) mPas 600 + 200
Gel time (130 ℃), 12 + 3 min Gelnorm, 10 g
Tg 122 IEC 61006 ℃
VOC % < 2 ISO 60455-3
Mechanical properties of
Bond strength (23 ℃) daN 44 IEC 1033
Bond strength (130 ℃), daN 13.8 IEC 1033
Bond strength (155 ℃), daN 10 IEC 1033
Bond strength (180 ℃), daN 8.3 IEC 1033
Chemical properties
