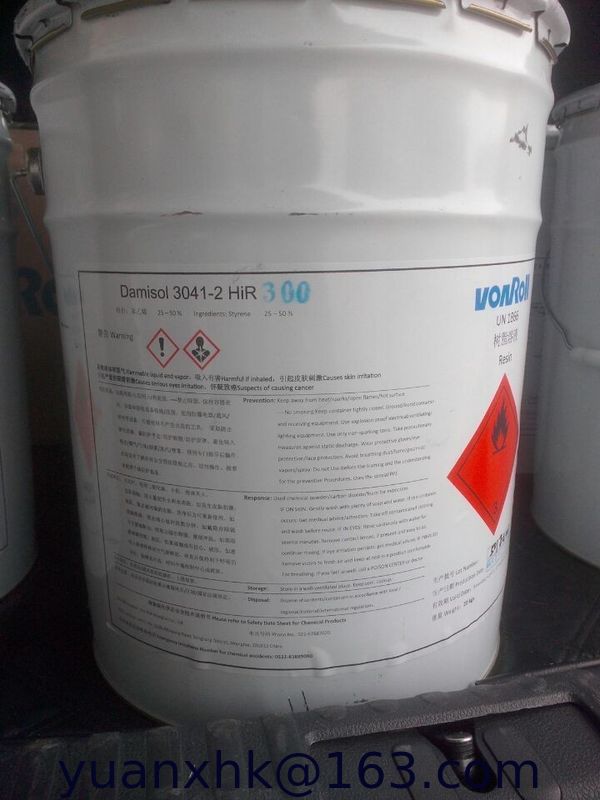

Damisol@3041-700

Damisol@3041-700

 hyperresponsiveness dripping leaching resin  _

 H level  _

 the excellent mechanical properties, durable  _

 high flexibility  _

 passed UL certification (certificate number: E98511)  _

An overview of the

A two-component, high temperature resistant, light yellow transparent unsaturated polyester resin, with Damidil 9117 as reaction diluent, after thermal crosslinking with H

Persistent high temperature resistant properties of the level above.

UL H level, certification number: E98511.

This product is a two-component products, need to use 1% Damicat 9006, 20 kg resin product cost with 200 g 9006.

The viscosity of the product is 100 mpas, but this series of products have 300 mpas and 700 mpas the viscosity of the product.

application

Apply to the coil, especially to high mechanical strength of the motor and stator coil immersion, rolling and continuous dipping.

With 1% of the 9006, improves reactivity, crosslinking process shorter; If dispatch ratio to 2%, can accelerate the crosslinking process.

operation

With 1% of Damicat 9006 3041-2 HIR product can be used for any automatic or manual dripping leaching equipment. According to the different

Select resin viscosity parameters and type of the motor. 3041-2 HIR series has 100 mpas, mpas mpas 300 and 300

Three kinds of specifications, the viscosity in order to avoid users dilute the adjustment and bring the risk of error.

Crosslinking process: copper test, 130 oc for 15 to 30 minutes, 150 oc for 15 minutes.

This series resins by increasing the catalyst content (2%), to speed up the crosslinking process.

Resin should be to avoid impurity contamination and placed in the < 25 oc environment.

So in large storage tank, storage must regularly test the viscosity changes.

Damisol after mixed catalyst under the condition of 3041-23 oc HIR product can be stable at least a week.

packaging

20 kg keg

200 kg a barrel

Storage environment

Two-component 3041-2 HIR product, store in airtight container, valid up to 9 months (oc) or 12 months

(oc).

Such as large storage tank inside, it is suggested that kept under standard atmospheric pressure dry air inside; At the same time, it is recommended that the tank is not put in full, the most

As many as 70% of capacity.

Mixing resin from time to time, can make the oxygen permeation into the resin, thus improve the validity.

Health and safety

Avoid contact with skin and eyes.

Operating in a ventilation environment and far away from the fire.

Wear safety gloves and eye operation.

Please complete information query on the MSDS.

Product data

Physical properties of unit data reference standard

Shore hardness D 88 ISO 868

Flash point

OC or 32

Viscosity, Brookfield, 23 oc) mPas 100 + 20

Gel time (120 oc) mn 2 ~ 4

Mechanical properties of

Bond strength (23 oc) daN 34 IEC 1033

Bond strength (130 oc) daN 23 IEC 1033

Bond strength (155 oc) daN 17 IEC 1033

Bond strength (180 oc) daN 15 IEC 1033

Chemical properties

Water imbibition (23 oc, 7 days) % 0.66 ISO 62 or less

Chemical resistance (2% NaOH) % 0.19 ISO 175

Chemical resistance (10% HCl) % 0.24 ISO 175

Electrical properties

Dielectric strength (50% r.h., 23 oc) kV/mm DIN 46448 120 / VDE 46448 or higher
