Sterling® 77X-010 Air-Drying Impregnating Resin ELANTAS

Sterling® 77X-010 Air-Drying Impregnating Resin
Product Description
Sterling®77X-010 is a clear, solvent-borne, airdrying impregnating resin.
Areas of Application
Impregnation of stator and transformers windings
Protective coating for printed circuit boards,
resistors and other components
Features and Benefits
Fast drying
Excellent chemical and moisture
resistance
UL listed Class 130 through Class 180
Application Methods
Dip-and-Bake
Spray
Transportation / Storage
Store below 25°C / 77°F in a dry controlled
environment out of direct sunlight. This material
should be suitable for use stored under these
conditions in the original sealed containers for
twelve (12) months from the date of shipment.
Health / Safety
Refer to the Material Safety Data Sheet.

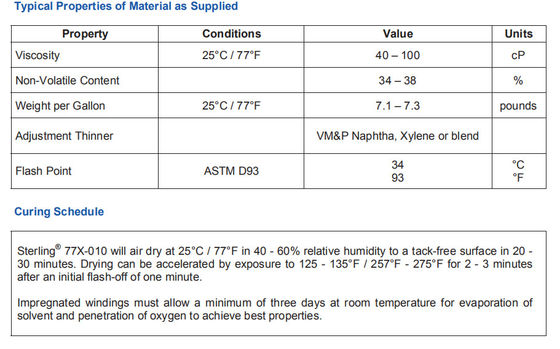

Curing Schedule
Sterling®
77X-010 will air dry at 25°C / 77°F in 40 - 60% relative humidity to a tack-free surface in 20 -
30 minutes. Drying can be accelerated by exposure to 125 - 135°F / 257°F - 275°F for 2 - 3 minutes
after an initial flash-off of one minute.
Impregnated windings must allow a minimum of three days at room temperature for evaporation of
solvent and penetration of oxygen to achieve best properties.
