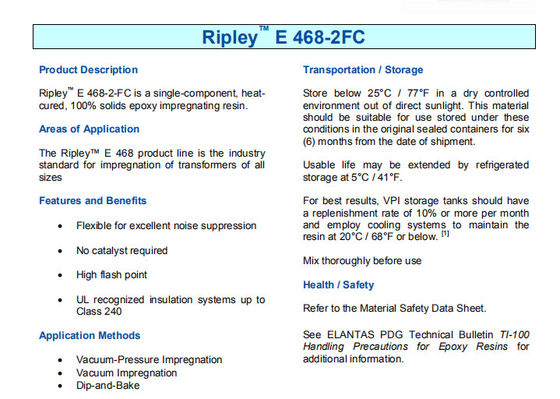

Ripley™ E 468-2FC
Product Description
Ripley™ E 468-2-FC is a single-component, heat
cured, 100% solids epoxy impregnating resin.
Areas of Application
The Ripley™ E 468 product line is the industry
standard for impregnation of transformers of all
sizes
Features and Benefits
Flexible for excellent noise suppression
No catalyst required
High flash point
UL recognized insulation systems up to
Class 240
Application Methods
Vacuum-Pressure Impregnation
Vacuum Impregnation
Dip-and-Bake
Transportation / Storage
Store below 25°C / 77°F in a dry controlled
environment out of direct sunlight. This material
should be suitable for use stored under these
conditions in the original sealed containers for six
(6) months from the date of shipment.
Usable life may be extended by refrigerated
storage at 5°C / 41°F.
For best results, VPI storage tanks should have
a replenishment rate of 10% or more per month
and employ cooling systems to maintain the
resin at 20°C / 68°F or below. [1]
Mix thoroughly before use
Health / Safety
Refer to the Material Safety Data Sheet.
See ELANTAS PDG Technical Bulletin TI-100
Handling Precautions for Epoxy Resins for
additional information.
