| Place of Origin: | China |
| Brand Name: | DOLPHS |
| Certification: | SGS UL |
| Model Number: | EG-43 |
Product description
It is a high temperature resistant 180 degree gray enamel, fast natural drying,
Formed with excellent heat resistance and chemical resistance, tough and flexible paint film.
It has the following excellent performance:
-UL authentication (document number OBOR2.E317427 and OBJS2.E317429)
Air naturally drying fast.
Temperature resistance H grade -180 degree
Excellent chemical resistance.
Oil resistance and moisture resistance.
Hard, smooth, abrasion resistant paint film.
Excellent adhesion.
Typical application:

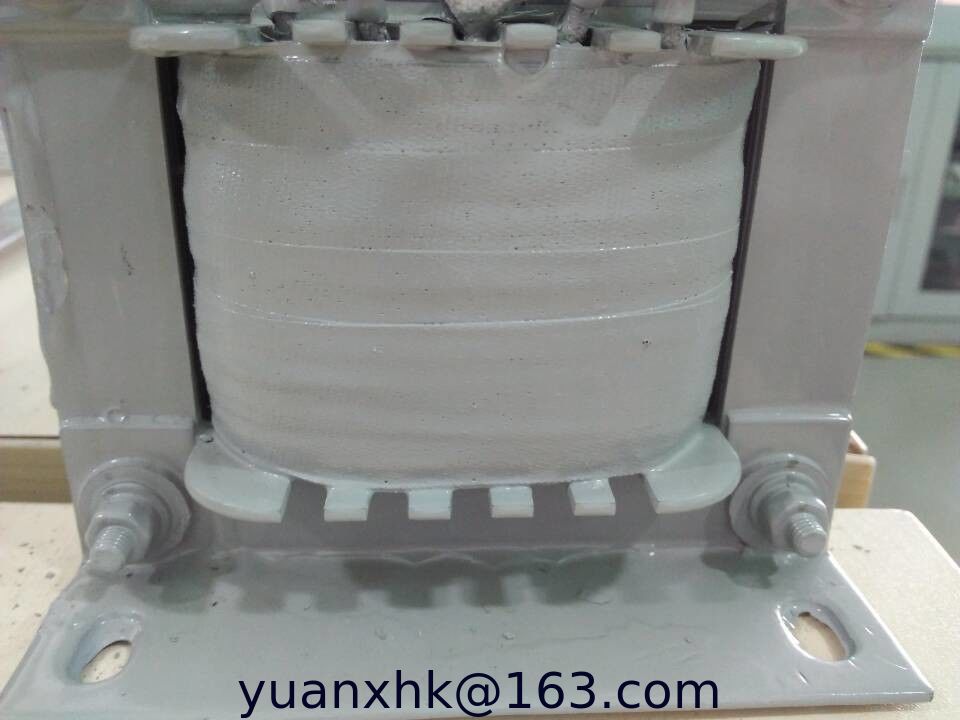

Rotor, stator, coil, transformer, printed circuit board, PCB board,
Resistors, buses, hardware, etc.
Physical property:
Color: gray
Viscosity: 120-150 CPS
Thinner: T-200
Film thickness: 1-3 mil
Table drying time (copper test): 60 s
Arc resistance (ASTM D-495) thickness > 60 micron: >200
Electrical performance:
Dielectric strength (25 m dry film) ASTM D-115:2000V/ mill
CTI (lEC 6D112):600m
Application guide:
The product has uniform rapid drying, glossy surface, superior wear resistance and excellent adhesion.
Its viscosity is suitable for application of brush, jet and immersion. If it is necessary to reduce viscosity, it must be diluted with about 15%-20% diluent T-200.
Storage and stability
Store in a cool and dry place (maximum temperature 30 C),
Avoid direct sunlight, avoid damp, keep dry, ventilate, keep away from heat source.
Quality guarantee period:
12 months (stored in sealed original barrels, never opened)
Origin: China
