| Place of Origin: | USA |
| Brand Name: | Dolphs |
| Certification: | UL,SGS |
| Model Number: | CB-1128AB |

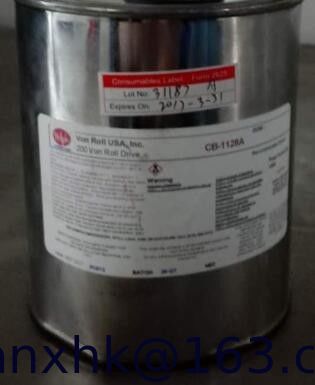

DOLPHS®CB-1128 Black insulating paint
8 pounds / sets
HI - THERM ® BC - 359 polyurethane insulating paint any standing water
BC - 359 low thermal processing type insulating varnish (made water)
Product description:
BC - 359 is a unique in order to save energy and increase production development subject to dilute the insulating paint (water).
Product features:
1, low baking temperature (110 ℃) and quick drying.
2, wire is not easy to broken off.
3, low cost - need to be used after dilution.
4, excellent moisture resistance, even in damp environment, dielectric strength will not change
5, excellent chemical resistance and abrasion resistance. In accordance with RULE 66 pollution control standards
6, UL certification to the CLASS H insulation system level (180 ℃)
7, very suitable for automation system
Product use:
Electric products and electronic components, various types of coil, motor, generator, the stator, transformers, relays, choke and etc
Directions for use:
1, according to the product characteristics determine the need to dilute concentrations
2, preheat to handle product to tape appressed, moisture removal
3, cool to 38 ℃ to 54 ℃
4, submerged proposition that made the water, 10 to 20 minutes until bubbles disappear
5, the product drip dry for 15 to 20 minutes
Under 6, as for the baking oven, baking temperature and time for the suggestion. Do appropriate adjustments depending on different products)
1-2 hour @ 3250 f
2-3 hours @ 2750 f
3-4 hours @ 2500 f
6-9 hours @ 2300 f
* completely hardened after baking temperature of baking time for products to meet the time needed for physical and chemical properties
Chemical properties:
Excellent water resistance:
Excellent acid sulfuric acid (10%)
Excellent alkali resistance (1% sodium hydroxide)
Resistant to salt water: excellent
Through the oil resistance, ASTM D - 115
Thinner and varnish maintenance
BC - 359 must be diluted for radical curing, starting when diluted amount to 20-25%, the actual amount of dilution according to the practical
Demand for regulation.
BC - 359 - T - 200 - x or T - 100 can be used to dilute.
Storage and shelf life
When stored in an airtight container under 700 f and temperature, the warranty for a period of 12 months after shipped from the factory.
