Product Code: Muscovite and refractory (HP5)
Can customize the specifications
Product parameters:

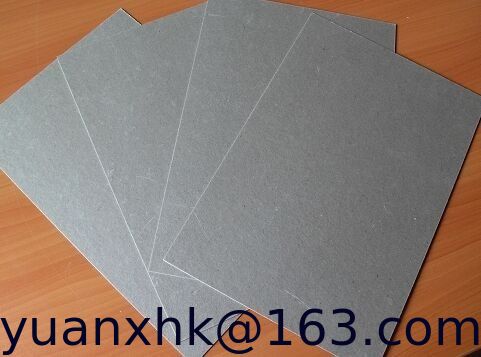

Muscovite mica paper
Adhesive: silicone resin
Mica content (%): = 90%
Rubber content (%): less than 10%
Thickness: 0.10 ~ 2 (mm)
Thickness error (mm):
Mean mean + / - 0.05
Each point - + 0.05 - 0.08
Density (g/cm 3): 1.6-2.4
Heating reduction (%): less than 1
The bending strength (kgf/mm 2): more than 18
The breakdown voltage (KV/mm):>20
High temperature insulation resistance (M): 200600
Working temperature: 550 degrees
Standard size (mm): 1000 x 600 ,1000 x 1200,
Thickness:0.1mm-50mm
Test standards: GB501985, IEC371
The breakdown voltage is less than or equal to 0.3 mm thickness of the mica plate to be agreed
